Fast Wire CNC Cutting Machine

2024 Model New Version – High Version Features

• New Control Panel That Controls Pneumatic Wire Tensioner, Wire Return Speed Adjustment, Dust Extraction and Wire Cleaning, Air Blowing All from Computer
• ESP Manufacturing Y Axis Dust Protection Bellows
• Dust Protection with X-Axis 2-Way Timing Belt
• Work Interruption and audible warning with Wire Broken Sensor
• Longer Life, Quieter, Lighter, Balanced Aluminum, PVC Coated Pulleys
• Pneumatic Wire Tensioning System (Pneumatic Conditioner and Pressure / kg adjusted)
• New Powerful Lighting in the Machine
• Reduced dust dispersion with Ground Zero Exterior Complete Cladding
• In-Machine Tractor Cabling System
• More efficient form of dust extraction
• Less Air Consumption, More Cleaning with Finer Air Blowing

Fast Wire CNC Cutting Machine Features:

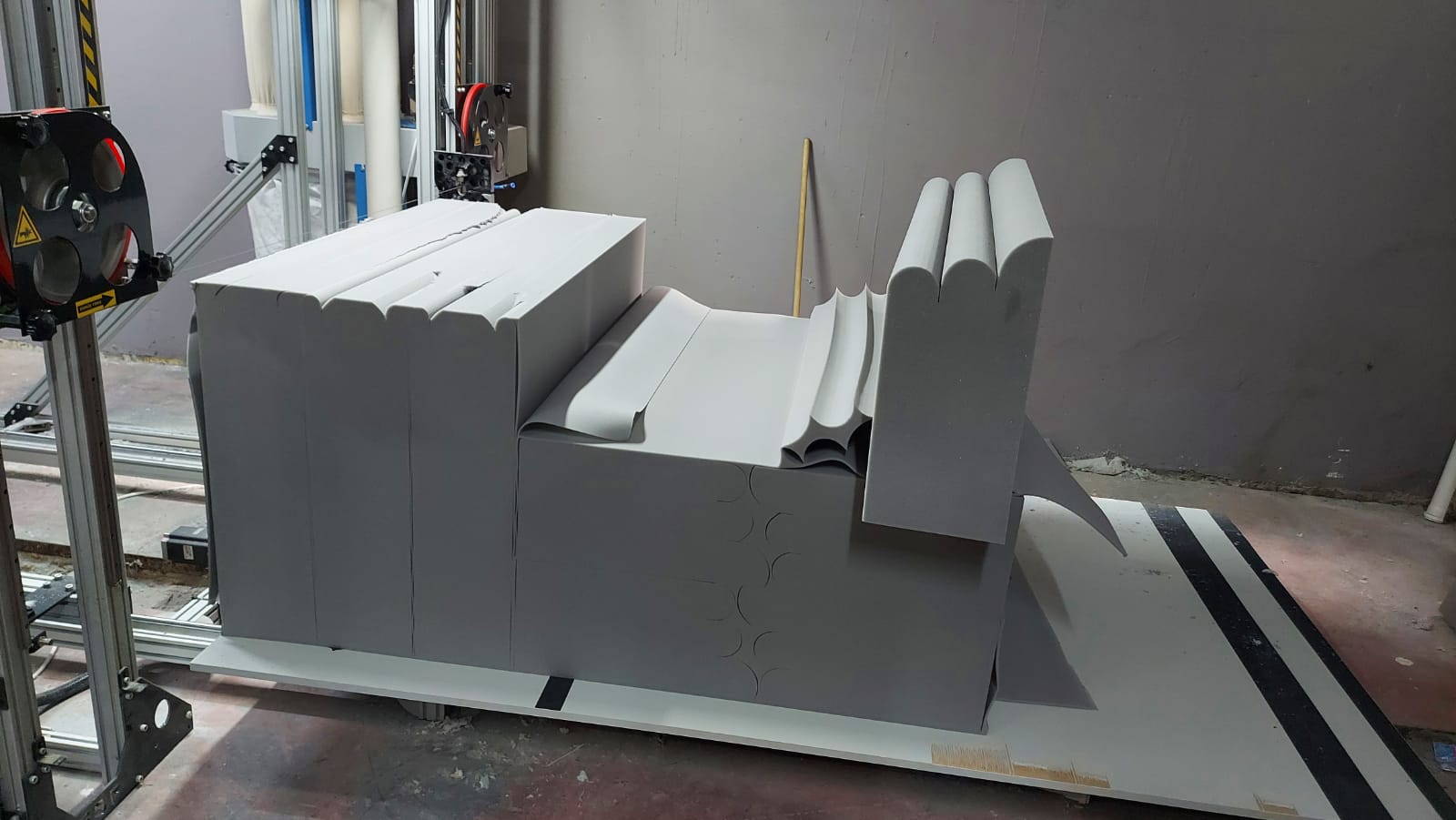

• Rock wool , Polyurethane (PU), Glass wool , Sponge , Ytong and Marble cutting.
• Thanks to the CNC control program, you can cut the plt drawing as desired.
• When the work starts, turn on the automatic wire motor and increase the motor speed to bring it to the set cutting speed.
• At the end of the work, stopping the wire motor by slowing down the speed of the wire motor and turning off the wire motor.
• Turning on the automatic air blowing system and vacuum system when the work starts, turning off the systems at the end of the work.
• Audible warning system at the end of work. Visual (light) warning system and LED lighting while the machine is running.
• Performing digital speed control.
• 3 kW, 380 VAC, 6.000 RPM motor and motor controller.
• Special cutting wire capable of cutting at a speed of 300 Km/h.
• Special dust absorbing (Vacuum) system. (1.600 m3/h)
• Strong sigma profile aluminum body.
• Y-axis precision linear slide motion system.
• Custom-cut and painted connection sheets.
• Convenient control panel and Computer.
• The WinPC-NC Light program is included in the price under license.

Working (Cutting) Area:

• X-Axis: 1200 mm.
• Y-Axis: 1200 mm.
• Wire Length : 1200 mm.

Power Usage:

• 220 VAC 50/60 Hz. , 1 kW , 10 Amps.
• 380 VAC 50/60 Hz. , 5 kW , 16 Amperes.

Cutting Machine Dimensions:

• Main case: 245cm long x 230cm wide x 210cm high.
• Bottom table: 300cm length x 125cm width x 40cm height.
• Weight: 450 KG.

What a Quick Wire Cutting Machine Can Do:

• It offers practical, economical and professional solutions in the sectors for construction, insulation, rock wool, sponge and cutting of more than 20 materials.
• Fast Wire CNC Cutting Machine performs the cutting of Rock wool, Polyurethane (PU), Glass wool, Sponge, Ytong and Marble in the most professional way.

Option : Automatic Tool Path Giving / Automatic Part Placement

• Thanks to the automatic tool path option, you can make the process of starting your cuts (tool path) very quickly and easily.
• Thanks to the Automatic Part Placement option, you can place the parts with minimum wastage and give the automatic tool path and prepare your parts for cutting very quickly and easily.
• Please contact us for detailed information.

Pneumatic Wire Tensioning System
