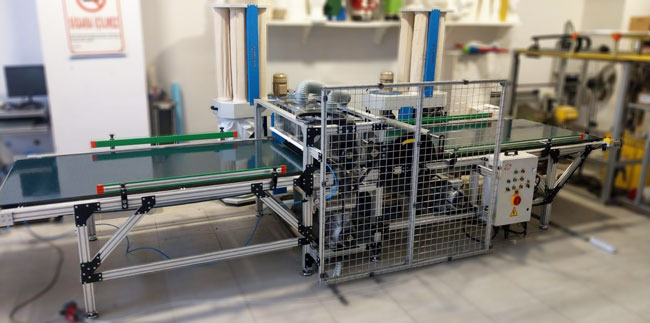

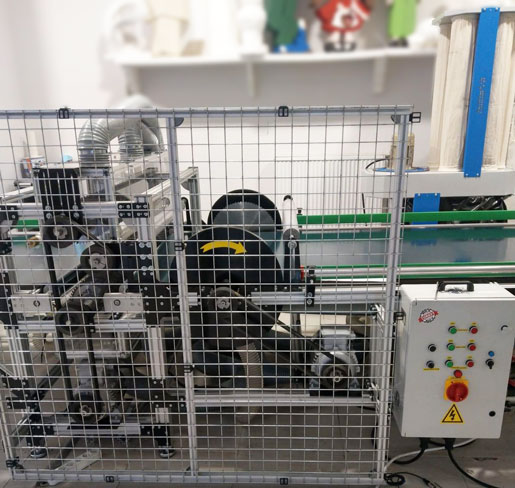

(PU) Polyurethane Side Shaver and Grooving Machine
- Machine Dimensions: Width: 1500 mm, Length: 5500 mm, Weight: 400 Kg.
- Operating Voltage: 380 V.
- It can open channels to material with a width of 1000 mm. He can shave from the sides.
- A total of 46 special knives of Ø300 mm Ø300 mm at the bottom, 23 at the top, adjustable for grooving.
- 2 pieces of 45 degree Ø450 mm special knives for shaving the side part.
- Special air blowing system from the lower blade and upper blade part.
- 2 pieces of 1600 m3 vacuum (dust extraction) system from the lower blade and upper blade part.
- 2 x 3 KW 1000 rpm Three Phase motors for grooving and side shaving.
- It can open channels up to a maximum thickness of 100 mm.
- Special conveyor system for easy operation.
- Adjustable conveyor speed.
- Easy-to-use control panel.
